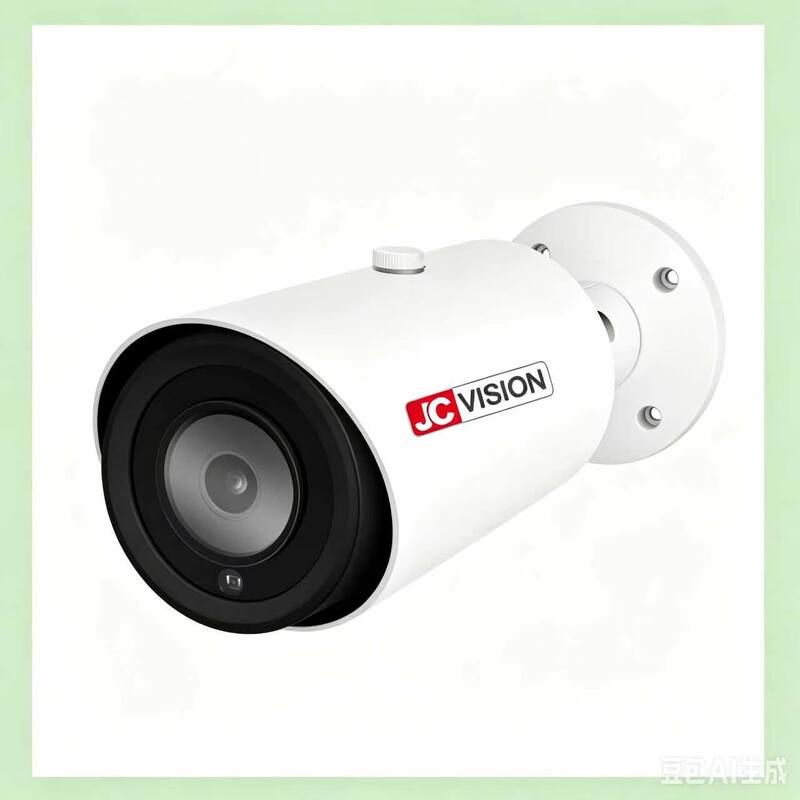

6MP VCA AI Face Detection Human & Vehicle Detection Camera 5X Moto Zoom IR PoE Bullet IP Camera
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | JCVision |
| Số mô hình: | JC-6MPAIFD&VD |
Thanh toán:
| Điều khoản thanh toán: | T/T |
|---|
|
Thông tin chi tiết |
|||
| Làm nổi bật: | 6MP PoE Bullet IP Camera,Human & Vehicle Detection Camera |
||
|---|---|---|---|
Mô tả sản phẩm
Features
v 1/3" CMOS Sensor
v 6MP HD Resolution Output
v Face Detection,Human&Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection
v Low illumination 0.01Lux
v Day/ Night (ICR), AWR, 2D/3D-DNR, IR-CUT
v Motion Detection, Privacy Mask, Flip
v RTSP and Onvif 23.12 Compatible
v H.265/ H.264 Dual-stream Media Server
v Easy-to-use P2P Cloud Service
v Multi web browser, PC Client, Mobile APP, Remote access
v RJ45 100mbps Network Port, IEEE802.3af PoE
v Lightning Protection 4000V
v Strong Water-proof Housing, IP67
v 20pcs SMD IR LEDs, IR Distance 30-40 meters
v 2.7-13.5MM Varifocal lens
v Internal Microphone/SD Slot Optional
Specification
| Model | JC-6MPAIFD&VD |
| Camera | |
| Image Sensor | 1/3" GC4653 CMOS |
| Soc Chip | Sigmastar SSC377D |
| Effective Pixels | 3072(H)×2048 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution |
Main Stream: Sub stream: 10fps@720P,30fps@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) |
| Video Bitrates | Main stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Optional |
| Led | |
| Light | 20pcs SMD IR LEDs |
| IR Distance | 30-40M |
| Lens | |
| Focal length | 2.7-13.5MM VariFocal Lens |
| Language | |
| English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. | |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | Yes, (1-5 meters) |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face (12-1000 pixel) |
| Trigger Action Linkage | Snapshot, Record, Relay, Email, FTP, NAS storage (optional) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger:Email, FTP, NAS |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |

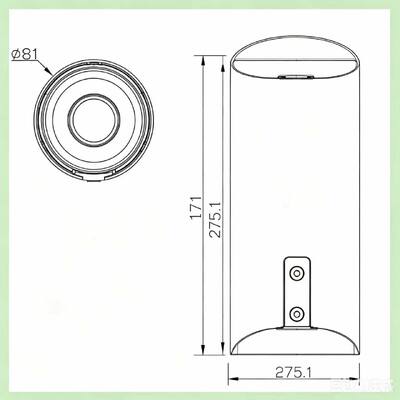

Dimension
