JCVision Self-service Floor Standing Machine
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | JCVISIO |
| Chứng nhận: | CE CB ROHS FC |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Có thể đàm phán |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10000https: //mao.ecer.com/index.php? R = sản phẩm/chỉnh sửa#mlecting_name |
|
Thông tin chi tiết |
|||
| Loại bảng điều khiển: | IPS (BOE, CSOT, HKC) Lớp A | Kích thước bảng điều khiển: | 15,6 inch / 21,5 inch / 23,8 inch |
|---|---|---|---|
| Nghị quyết: | 1920 (RGB) × 1080, FHD | Xem góc: | 89/89/89/89 (TYP.) (CR ≥ 10) |
| Tỷ lệ hiển thị: | 16: 9 | Loại đèn nền: | DẪN ĐẾN |
| Độ sáng màn hình: | 300 cd/m² (Điển hình) | Tốc độ khung hình: | 60Hz |
| Màu hỗ trợ: | 16,7m, 72% NTSC | Sự tương phản: | 4000: 1 (typ.) (Truyền) |
| Công nghệ cảm ứng: | Công nghệ điện dung dự kiến | Điểm chạm: | 10 điểm tiếp xúc hiệu quả |
| giao diện cảm ứng: | USB | Độ cứng bề mặt: | ≥6 giờ |
| Phương pháp đầu ra dữ liệu: | Đầu ra tọa độ | Hệ điều hành: | Android/Windows |
Mô tả sản phẩm
JCVision Self-service Desktop Machine Key Selling Points:
1. Diverse screen size options
Four specifications are available: 15.6 inches, 18.5 inches, 21.5 inches, and 23.8 inches to meet the needs of different scenarios.
The effective display area covers 344×193mm to 527×296mm, which is suitable for a variety of application scenarios.
2. High-definition display and high-quality panel
The resolution is 1920×1080 full HD, using BDE or Star A+ grade new LCD screen.
High brightness (≥50-300cd/m²), high contrast (2000:1), and wide viewing angle (178°) ensure clear and bright pictures.
6ms fast response time, support for video enhancement technologies such as 3D digital comb filtering.

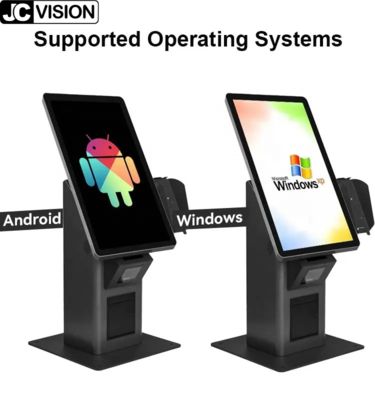

3. Dual system solution
Android version: equipped with Rockchip R5358 CPU, 4GB memory + 32GB storage, support Android 11 system.
Windows version: supports Windows 10/8/7 systems, equipped with 5.4 generation CPU, 4GB memory + 128GB storage, strong compatibility.
4. Multi-function interface and expandability
Dual USB interface (USB 2.0 for Android version, USB 3.0 for Windows version), RJ45 network port, serial port (RS232/485 optional).
Supports 4G network, WiFi, Bluetooth 4.0, and flexibly adapts to different network environments.
Supports USB/T card/network upgrade, convenient maintenance.
5. High-performance printing module (optional)
80mm thermal printer, supports full cutting/half cutting, printing speed up to 180mm/s, resolution 201dpi.
Supports QR code, barcode (Code128, PDF417, etc.) scanning, with high recognition accuracy (1D code ±5mil, QR code ±10mil).
6. High-sensitivity touch technology
10-point capacitive touch, response time 3ms, accuracy ±1.5mm, life span over 60 million times.
Full-angle anti-glare design to avoid accidental touch.
7. Durable design and environmental adaptability
Aluminum alloy frame + high-quality sheet metal structure, surface sandblasting oxidation treatment, strong impact resistance.

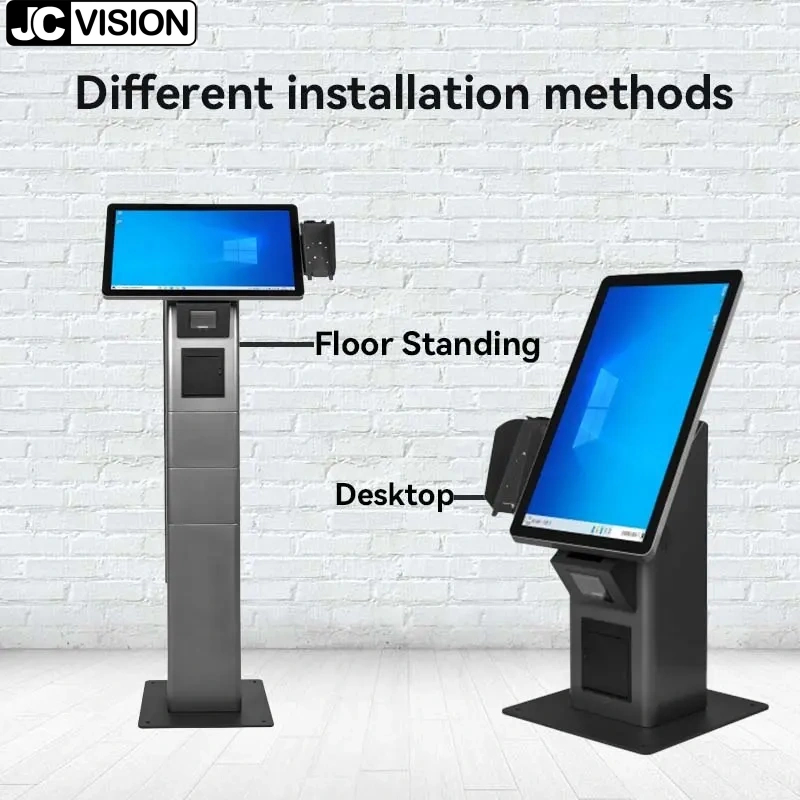

Tempered glass panel (compression resistance ≥80MPa), supports wall-mounted, vertical, desktop and other installation methods.
Wide temperature operation (-20°C~60°C), humidity adaptation 20%~80%, high stability.
8. Multimedia and intelligent functions
Stereo audio output (2×2W speakers), supports multiple formats such as MP3/WMA/FLAC.
Support contactless cards (Mifare series, NTAG, etc.), sensing distance 0~5cm.
Real-time clock (RTC) and low-power standby mode (≤1W), energy saving and environmental protection.
9. Convenient packaging and transportation
Detailed marking of net weight and gross weight of each model (such as 4kg for 15.6-inch and 7.5kg for 23.8-inch) for easy logistics planning.
Compact carton size design reduces transportation costs.
Summary

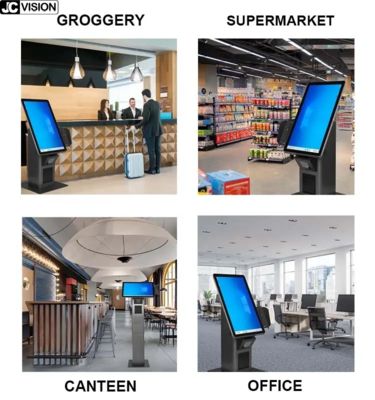

JCVision self-service terminal takes high-definition display, multi-system compatibility, and modular expansion (printing/scanning/touch) as its core advantages, combined with industrial-grade durable design and flexible deployment methods, and is suitable for self-service needs in multiple scenarios such as retail, government affairs, and medical care.
